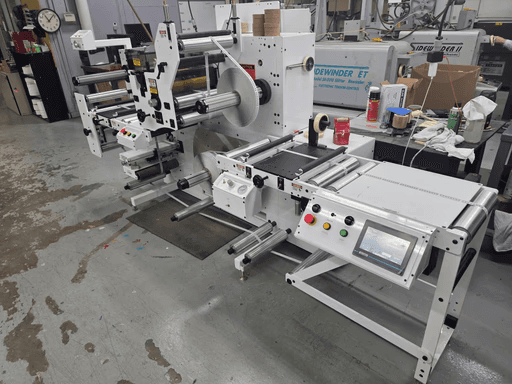

ISR Inspection Slitter / Rewinder
Integrated Slitting, Rewinding, and Inline Inspection System
The ISR Inspection Slitter / Rewinder is designed for label converting operations that require integrated inspection as part of their everyday slitting and rewinding workflow. Built to support both basic strobe inspection and advanced 100% camera-based vision systems, the ISR provides a controlled environment for defect detection, review, and removal—without disrupting production efficiency.
Compared to base slitter rewind platforms, the ISR is purpose-built to enhance inspection performance through dedicated inspection zones, ergonomic access, and controlled web handling.
Where the ISR Fits Best
Optimized for production environments where inspection accuracy and defect management are essential.
Inline Inspection Workflows
Designed for operations that require routine inspection during slitting and rewinding rather than post-process review.
Vision-Based Quality Control
Supports both basic LED strobe inspection and sophisticated camera-based vision systems for defect detection.
Defect Removal and Splicing
Enables efficient removal of detected defects without compromising finished roll quality.
Wide Range of Label Substrates
Handles materials from thin, unsupported films to thick tag stocks with consistent tension and control.
Key Capabilities – Built for Inspection-Centric Operations
Dedicated Inspection and Splice Zones
The ISR features dual inspection and splice tables. The primary extended-length table provides ergonomic mounting for camera inspection systems, while the secondary splice table allows operators to stop the web precisely at detected defects for removal or correction.
Inspection Tower with Integrated Strobe
An inspection tower with LED strobe is standard, providing immediate visual inspection capability and serving as a foundation for advanced camera integration.
Controlled Defect Handling
When a defect is detected, the system advances the web to a predefined position, allowing defects to be manually removed or automatically isolated using an optional take-up rewind.
High-Speed Slitting and Rewinding
Designed to operate at production speeds of up to 750 feet per minute while maintaining web stability, inspection accuracy, and consistent rewind quality.
Standard ISR System Features
Available web widths: 10", 13", 16", 18", and 20"
Dual inspection and splice tables
Maximum unwind diameter: 30" with 3" inflatable spindle
Reversible rewinds for over- or under-winding
Heavy-duty pneumatic disk brake with automatic end-of-roll shutoff
Maximum rewind diameter: 18" with EZ-Change inflatable spindles
Ultrasonic web guide for clear and opaque substrates
Smooth, clutch-less drive with controlled acceleration and deceleration
Adjustable electronic tension control
Programmable incremental counter
Interchangeable slitting modules: Rotary shear Razor slitting Crush knife
Options and Expandability
The ISR Inspection Slitter / Rewinder supports a range of optional enhancements to tailor inspection and finishing capability to specific production requirements.
Available options include:
PLC-controlled automatic web tension with touchscreen interface
Integrated vision inspection systems for blemish, color, and missing-label detection
Pneumatic top rider rollers for unsupported films and large-diameter rewinds
Multiple EZ-Change rewind spindle diameter options
Lamination station with inflatable spindle
Waste wind-up module
Bowed spread roller for finished roll separation
