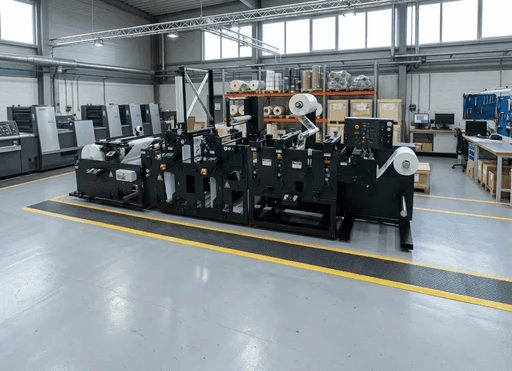

DieMaster DM Series
Non-Registering Full-Rotary Die Cutting and Finishing System
The DieMaster DM Series is a full-rotary die cutting and finishing system designed for label converting applications that do not require print-to-die re-registration. Built for speed, durability, and efficiency, it is particularly well suited for blank label production and other high-volume applications where repeatability and throughput are the primary priorities.
Sharing the same rigid mechanical foundation and die cutting architecture as the DieMaster DMRR Series, the DM Series delivers consistent, precision die cutting performance—without the added cost or complexity of a re-registering system.
Where the DieMaster DM Series Fits Best
Optimized for production environments focused on speed, stability, and cost-effective output.
Blank Label Production
Ideal for blank and unprinted label workflows where re-registration is not required.
High-Speed, Long-Run Operations
Designed to take full advantage of continuous, full-rotary operation at sustained production speeds.
Wide Range of Substrates
Capable of converting materials ranging from thin, unsupported films to thick tag stock and gasket substrates.
Cost-Efficient Finishing
Delivers the same robust die cutting performance as higher-end systems while minimizing upfront investment.
Key Capabilities – Built for Speed and Simplicity
Full-Rotary Die Cutting
Engineered for continuous, full-rotary operation, allowing converters to maximize line speed and overall throughput on long production runs.
High-Speed Production Performance
The DieMaster DM Series is built to operate at the upper limits of line speed, enabling converters in competitive blank label markets to fully utilize system capacity.
Robust Mechanical Platform
Utilizes the same rigid frame and die cutting components found in the DieMaster DMRR Series, ensuring long-term durability and consistent performance.
Versatile Converting Capability
Supports die cutting, slitting, and rewinding in a single pass, streamlining production workflows and reducing handling time.
Standard DieMaster DM Series Features
Rigid, dual-sided die frame for maximum support and durability
Interchangeable slitting module with a choice of rotary shear, crush knife or razor slitting
Large diameter unwind with pneumatically inflatable, unwind spindle
Dual, independently-driven, reversible rewind spindles
Ultrasonic web guide for processing clear and opaque substrates
Programmable multi-function counter
Two fully supported, invertible die stations, with hardened anvil rolls and die blocks
Simple integration of fanfolder, conveyor and stacker systems
Heavy-duty variable speed main system servo motor and drive
Process Expansion and Modularity
While designed as a streamlined, non-registering system, the DieMaster DM Series supports a range of optional processing enhancements to extend functionality as production needs evolve.
Automated rewind tension control
On-line inspection
Flexographic printing
Lamination
Additional Process Expansion Modules can be integrated to complement the base system configuration.
View All Process Expansion Modules →
Technical Resources
Access detailed engineering documentation and system specifications for the DieMaster DM Series.
