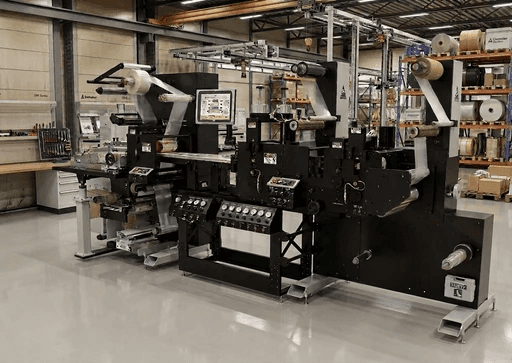

DieMaster DM-ECL Series
Booklet and Extended Content Label Onserting System
The DieMaster DM-ECL Series is a dedicated booklet and extended content label (ECL) onserting and finishing system designed for complex, multi-layer label applications. Built as a precision roll-to-roll or roll-to-sheet platform, it enables accurate booklet placement, controlled web handling, and downstream finishing within a single, integrated workflow.
Engineered for consistency and control, the DM-ECL Series allows converters to produce high-quality extended content labels, booklets, and pamphlet labels while maintaining repeatable placement accuracy and finished product integrity.
Where the DieMaster DM-ECL Series Fits Best
Purpose-built for label applications that require integrated booklet or insert placement as part of the finishing process.
Extended Content Labels (ECL)
Ideal for pharmaceutical, regulatory, and information-dense labels requiring multi-panel or booklet formats.
Booklet and Pamphlet Labels
Supports consistent placement of folded booklets and inserts within pressure-sensitive label constructions.
Complex Finishing Workflows
Designed for operations that require onserting, laminating, die cutting, and rewinding in a coordinated, single-pass process.
Scalable Entry into ECL Production
Allows converters to begin with conventional label finishing and add onserting capability as business demand grows.
Key Capabilities – Built for Accuracy and Integration
Precision Booklet Onserting
The DM-ECL Series integrates a high-accuracy feeder system to present and position booklets up to ¼ inch thick onto a moving web with consistent timing and placement.
Dual-Servo Web Control
A dual-servo drive architecture precisely controls web speed, position, and tension as material is presented to the onserter and downstream finishing stations.
Integrated Finishing Platform
After booklet placement, the system supports a complete finishing sequence—including lamination, rotary die cutting, waste removal, slitting, and rewinding—within a unified workflow.
Expandable System Architecture
Designed as a modular platform, the DM-ECL Series supports future expansion and configuration changes as production requirements evolve.
Standard DieMaster DM-ECL Series Features
Dual-Servo, precision web registration system with electronic registration sensor
Pneumatic die disengaging for die damage prevention due to booklet misplacement
Ultrasonic web guide for processing clear and opaque substrates
Adjustable onserter support and operator inspection table
Dual, independently-driven, reversible rewind spindles
Heavy-duty variable speed main system servo motor and drive
Programmable multi-function counter
Simple integration of fanfolder, conveyor and stacker systems
Two fully supported, invertible die stations, with hardened anvil rolls and die blocks
Interchangeable slitting module with a choice of rotary shear, crush knife or razor slitting
User friendly touch screen control panel
Process Expansion and Modularity
The DieMaster DM-ECL Series supports additional process expansion options to enhance finishing capability and adapt to evolving customer requirements.
Optional process enhancements include:
Additional lamination configurations
Specialized slitting and rewinding options
Extended inspection and handling modules
Process Expansion Modules can be added as part of the initial system configuration or integrated later as production needs grow.
View All Process Expansion Modules →
Technical Resources
Access detailed engineering documentation and system specifications for the DieMaster DM-ECL Series.
